NEW! iSonic 8L - XT -

BRINGING ULTRASONIC FLOW MEASUREMENT TO THE EXTREMES

iSonic 8L-XT-Liquid Flow Measurement for Extreme Temperatures

XTC-Cryogenic Temperatures

XTH-Power Plant Feedwater Temperatures

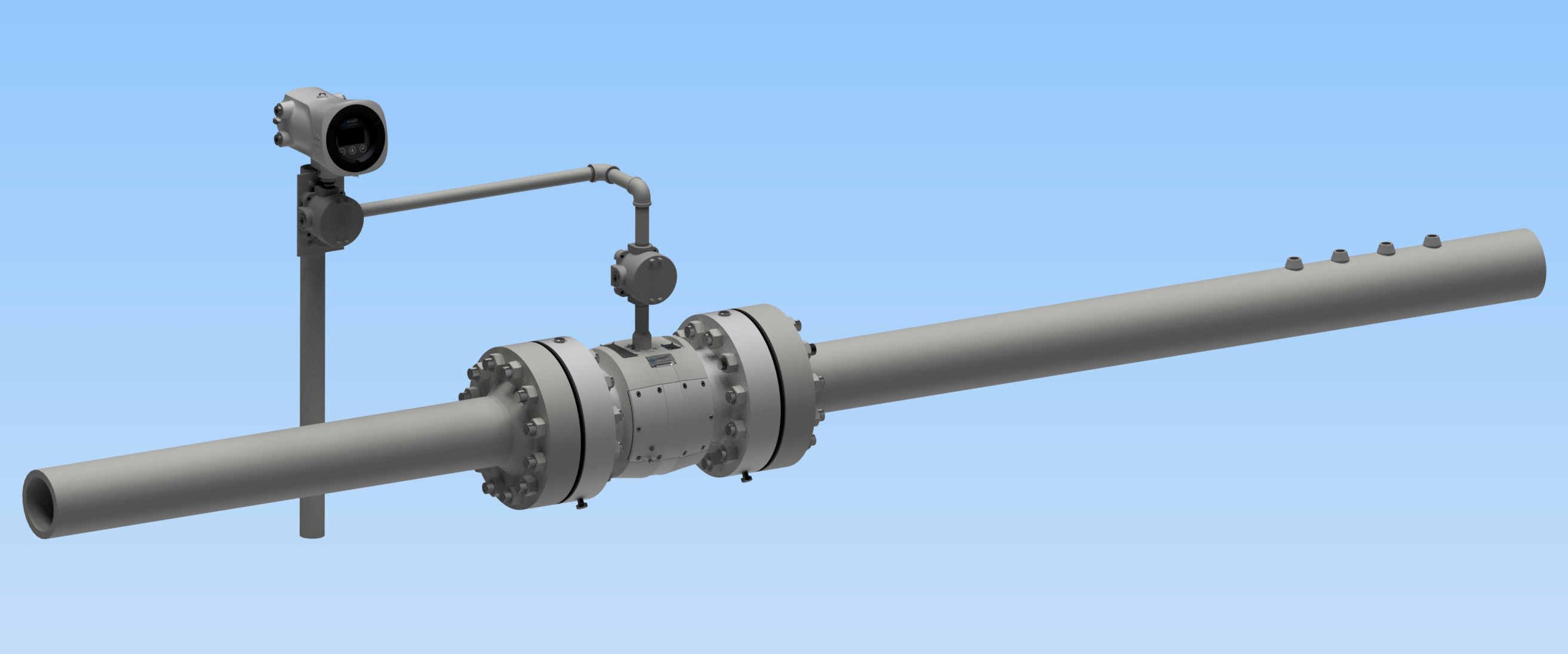

The iSonic 8L-XT is our new addition to the iSonic family. The iSonic 8L-XTH and iSonic 4L-XTCare state-of-the-art multi-path flowmeters designed to measure fluids over a wide range of temperatures.

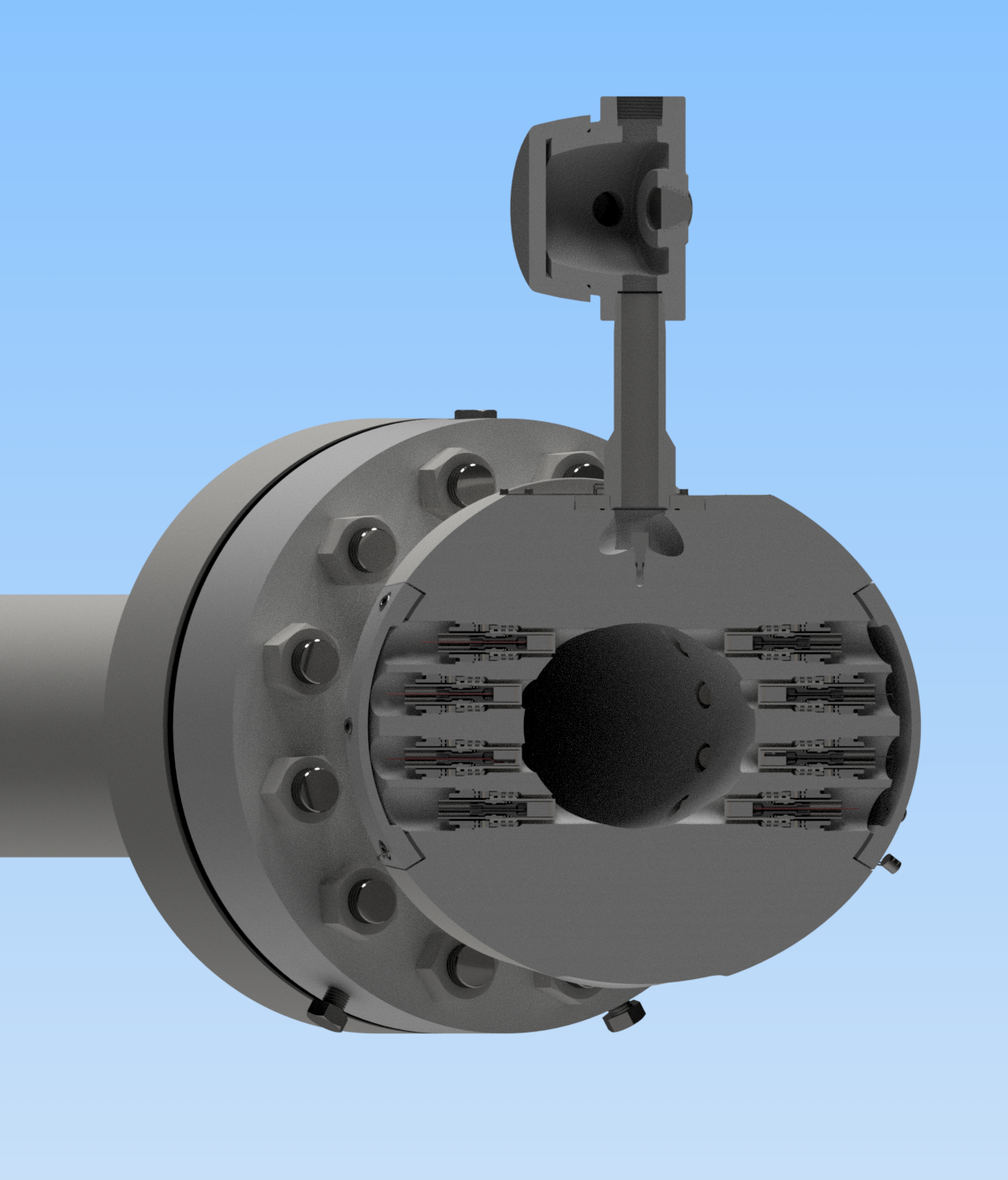

The iSonic 8L/4L-XT are ultrasonic flow meters of forged steel bodies with up to 16 high-precision non-wetted transducers, high-speed electronics, and lightning-fast signal processing resulting in the most innovative, accurate and reliable ultrasonic flow meter in the industry.

FEATURES AND BENEFITS

• A multi-path flowmeter designed for custody transfer and precise calorimetrics
• Non-wetted transducers welded-in stainless housings
• Available in sizes 3"- 24"
• Working pressures up to 6,000 psig
• Working temperatures, -200 to 100 C cryogenic operation and -40 to 250 C for high temperatures

TYPICAL APPLICATIONS

• Wide flow range, ideal for LNG products and high-temperature water
• Compliant with API Chapter 5.8, OIML R 117 Conformities include ATEX 2014/34/EU, NEC/CEC (US/CA) explosion-proof/Intrinsically Safe ACCURATE, REPEATABLE AND RELIABLE

iSonic 8L-XT/4L-XT PERFORMANCE

Linearity: ± 0.15% (8L) and ± 0.25% (4L) of measured value over a 40:1 turndown

Uncertainty of Meter Factor: < ± 0.027% (API MPMS, Chapter 5.8 )

Velocity Range: 1.0 fps (0.3 m/s) to 40.0 fps (12.2 m/s) -higher rates available

TYPICAL APPLICATIONS

• Custody Transfer Pipelines - LPG plants loading and off-loading
• Power Plant Feedwater
• Line Balance
• Leak Detection
• Check Metering
• LNG Cargo Loading & Offloading
• Offshore Platforms
